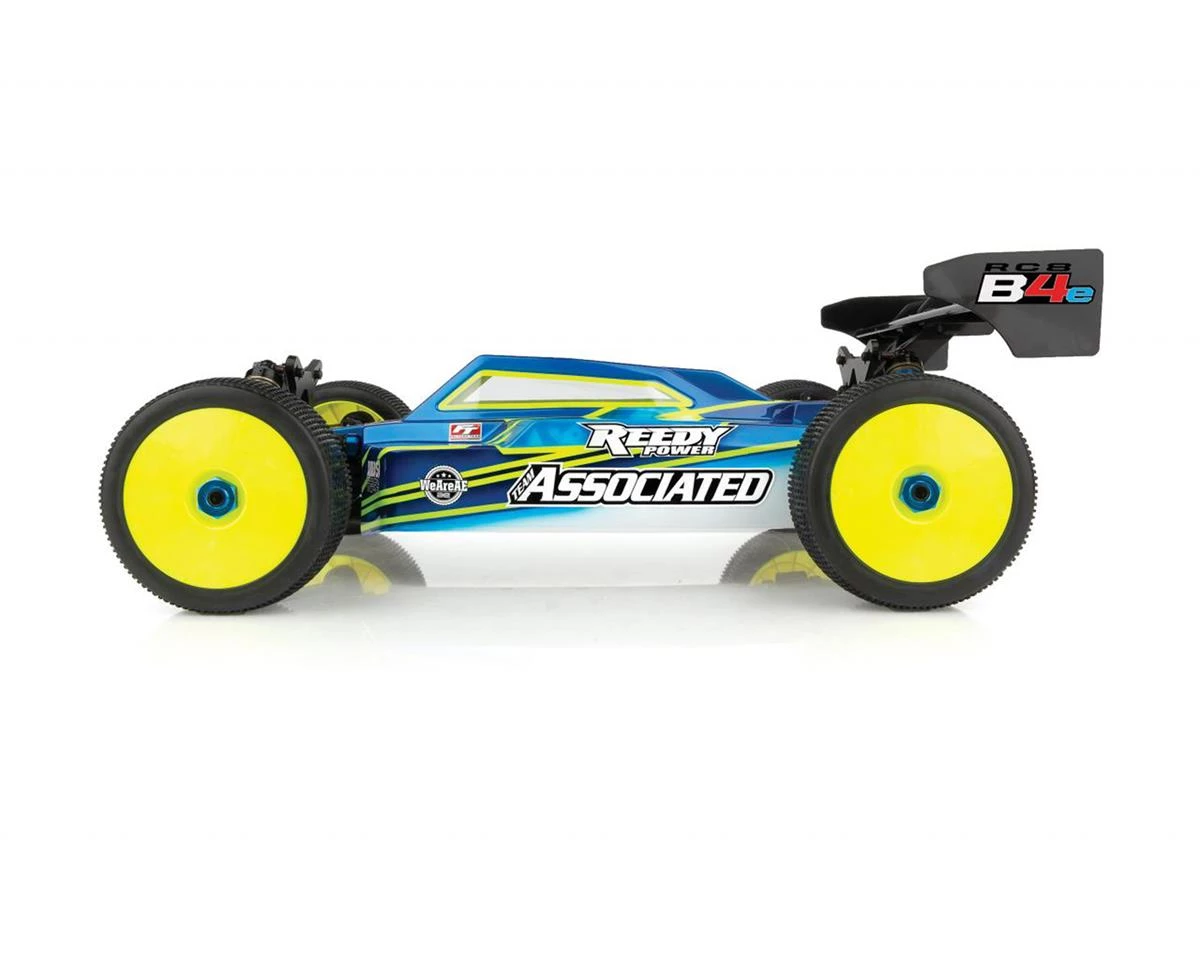

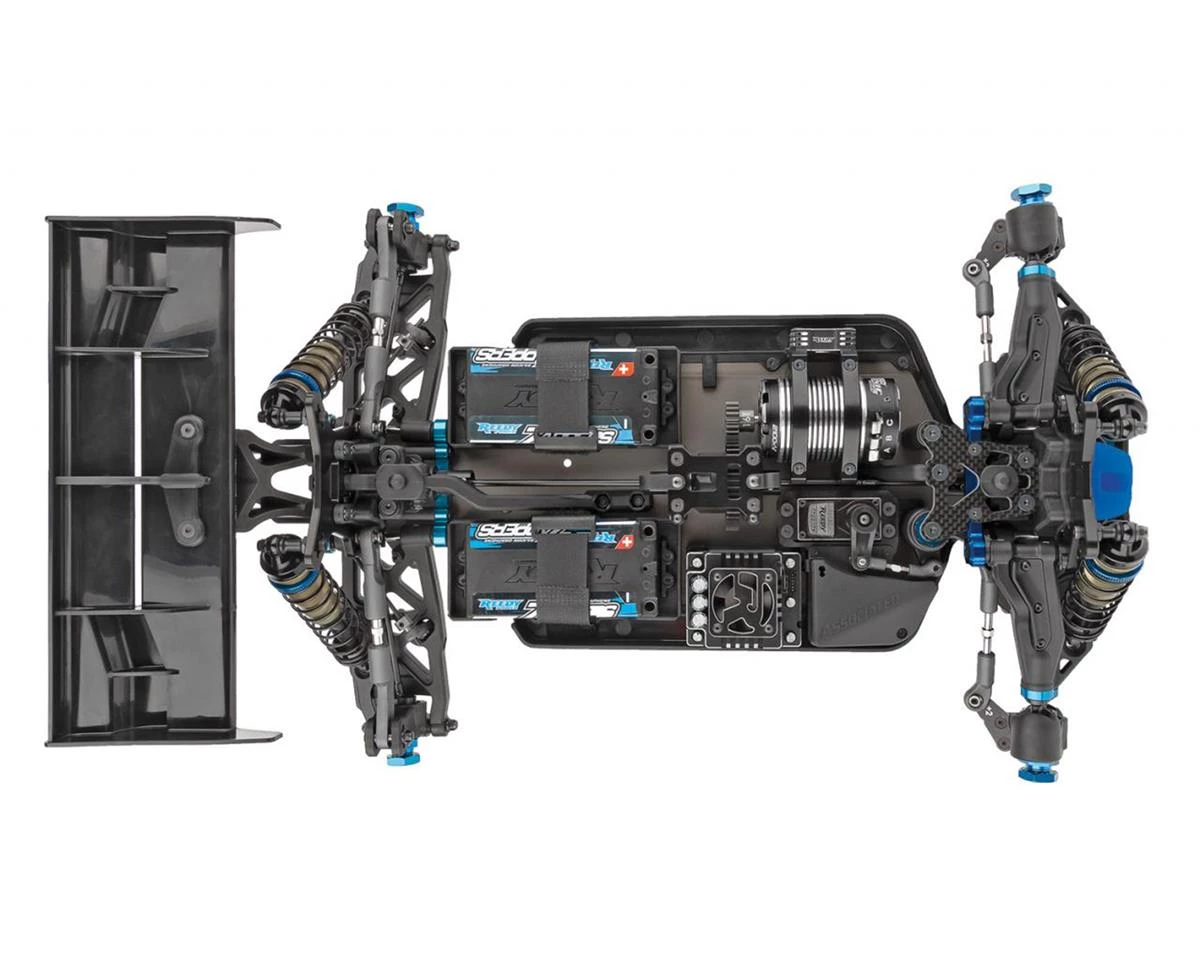

Team Associated RC8B4e Team 1/8 4WD Off-Road Electric Buggy Kit

The Team Associated RC8B4e Team 1/8 4WD Off-Road Electric Buggy Kit is designed to push the limits of off road racing. This buggy has been given a huge overhaul and features updated battery configurations, front upper and lower arm design, rear arm design, chassis braces and rear hub design for peak performance. The front-end geometry has also received updates allowing for increased stability and more consistent steering through the entire steering throw. All of these features come together for a buggy that is ready to dominate the track.

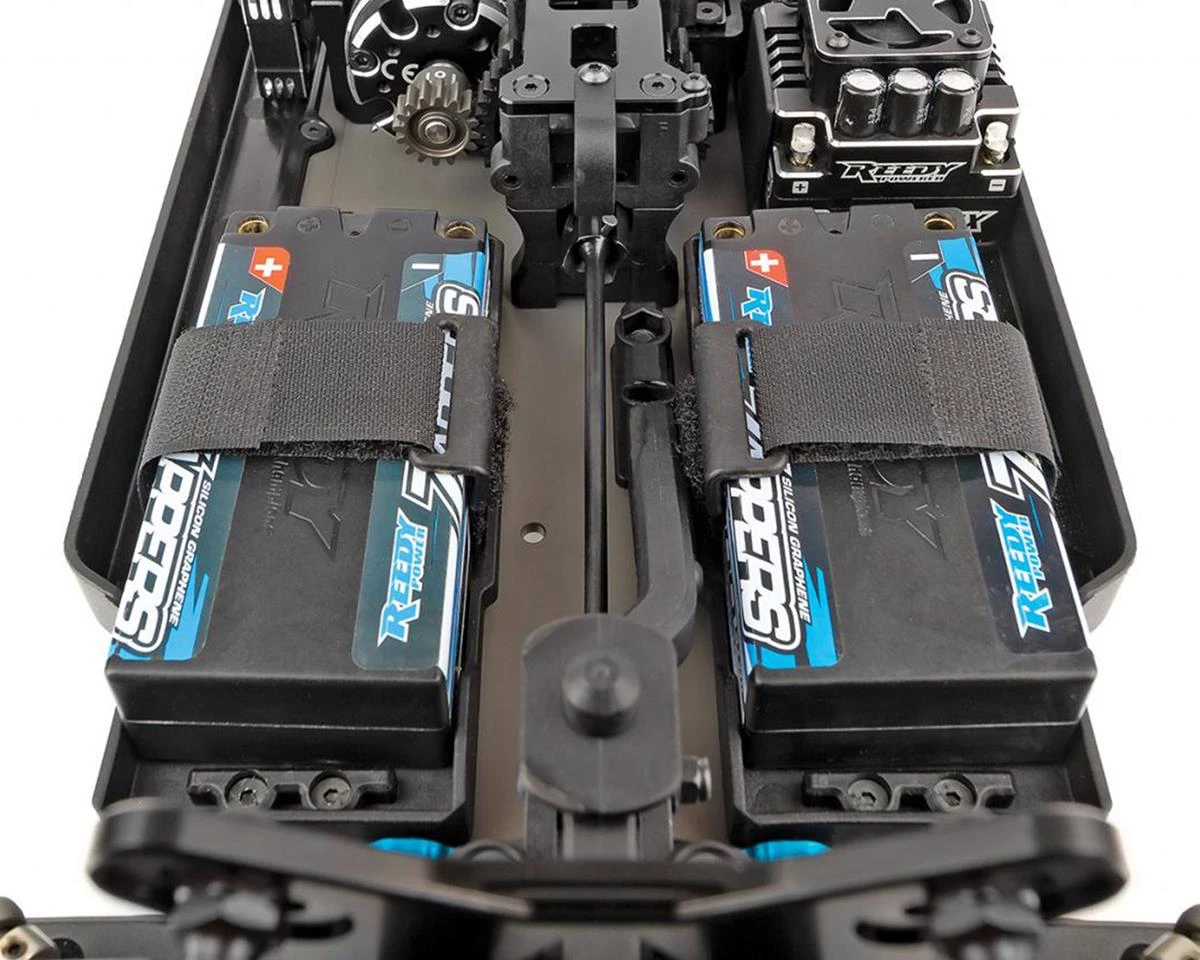

Battery Configurations
This chassis can be configured to two battery configurations.

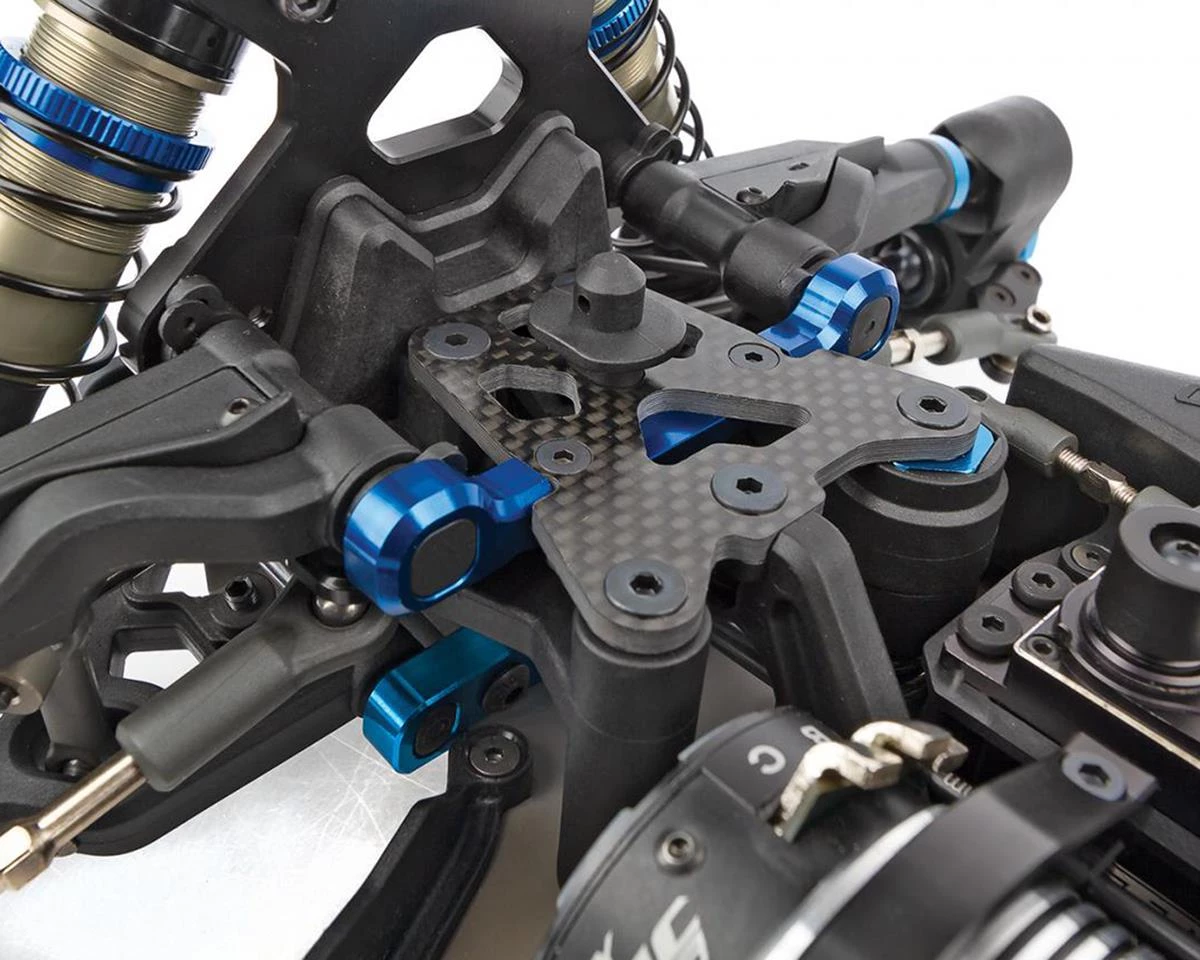

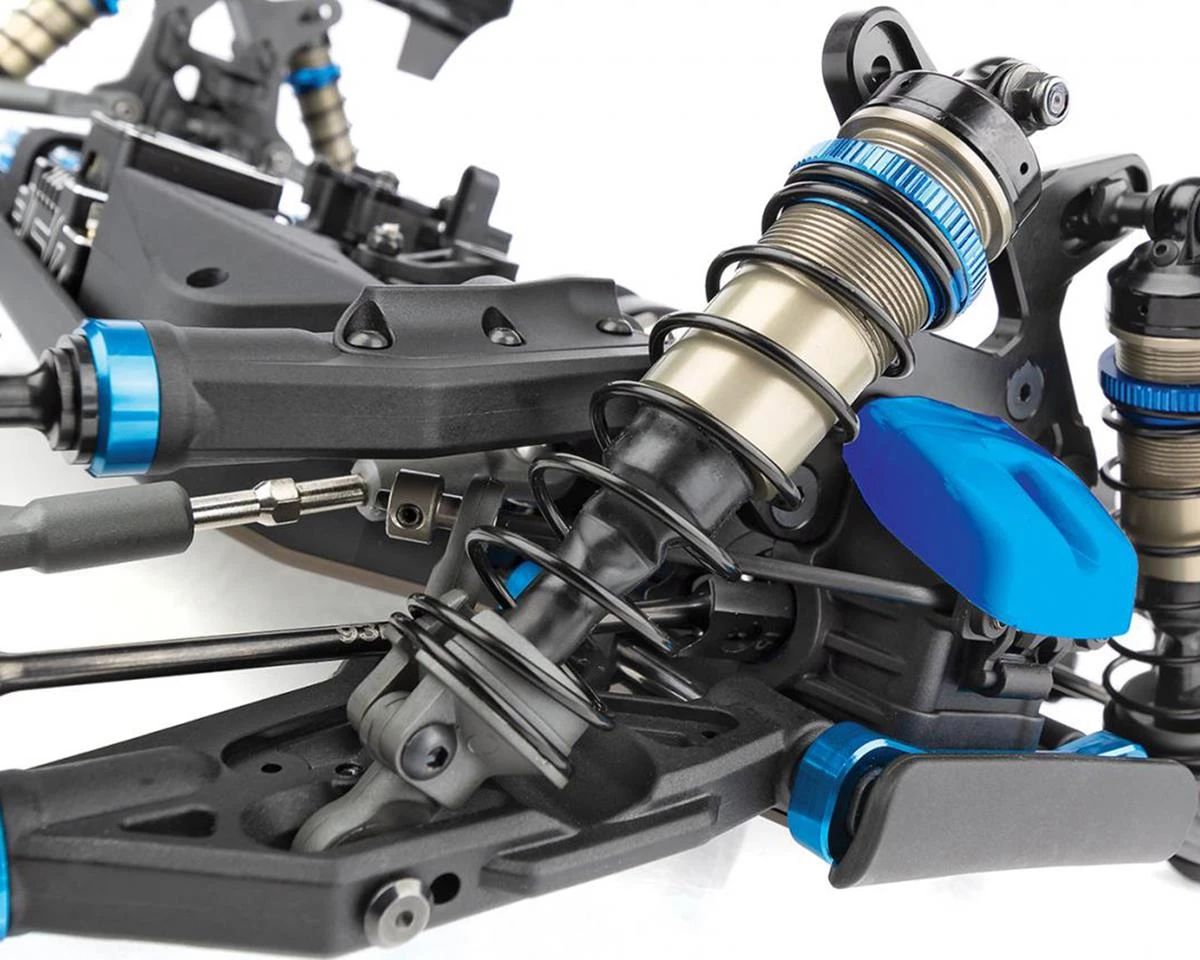

The front upper and lower suspension arms have been designed to accommodate a wide range of flex and stiffness options. Optional inserts have been made to provide extreme fine tuning and will work with the upper or lower arm. The lower arm features a one-piece anti-roll bar link mounts that are in-line with the anti-roll bar for simplified assembly and operation.

The rear arms have been designed for optimum flex and stiffness with no inserts. However, optional inserts may be used for fine tuning. The rear arms also feature a one-piece anti-roll bar link is mounted in-line with the anti-roll bar with a BHCS instead of a shock pin for simplified assembly.

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

• Updated front and rear suspension arms
• Updated battery configurations
• Rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
• Rear wing has more vertical fins for increased straight-line stability, a taller rear wickerbill height for increased downforce, increased strength in various areas to reduce bending fatigue, and dimples on the backside as a template for cutout holes
• Rear chassis brace has several design features and flex options

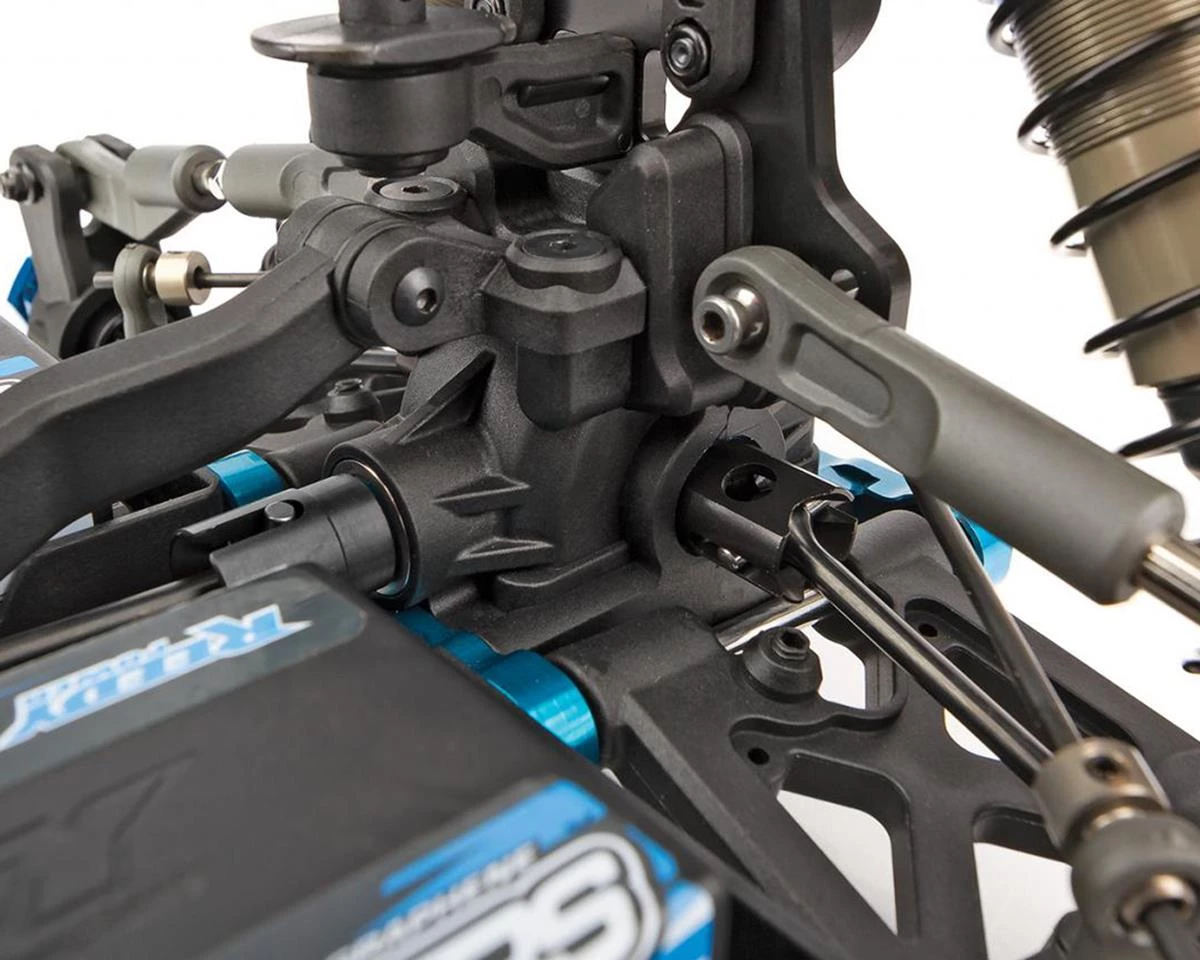

• +1mm offset rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning

Scale Size: 1:8 Scale

Terrain: Off-Road

Body Style: Buggy

Drive: 4WD

Length: 486mm (19.13in)

Width: 304.5mm (11.99in)

Wheelbase: varies

Weight: varies

Power Source: Electric

Assembly Level: Kit

• (1) RC8B4 Off-Road Electric Buggy Kit
