Team Associated RC10 T6.1 Off Road Team Stadium Truck Kit

The Team Associated RC10 T6.1 Off Road Team Truck Kit represents the next step in the evolution of stadium truck racing. The RC10T6.1 Team Kit began life with the many great advantages already learned through the development of the RC10B6.1. Armed with extensive feedback from racers like you, the engineers behind the doors of Team Associated’s Area 51 set off to design the ultimate truck chassis utilizing every advantage possible.

The RC10T6.1 shares key components with the RC10B6.1 and RC10B6.1D Team Kits, making it easier than ever to run multiple classes at the same time. Like the RC10B6.1, the RC10T6.1 has features such as an easy-access differential with height adjustment, redesigned slipper assembly, and the speed, durability and lineage expected of a true champion.

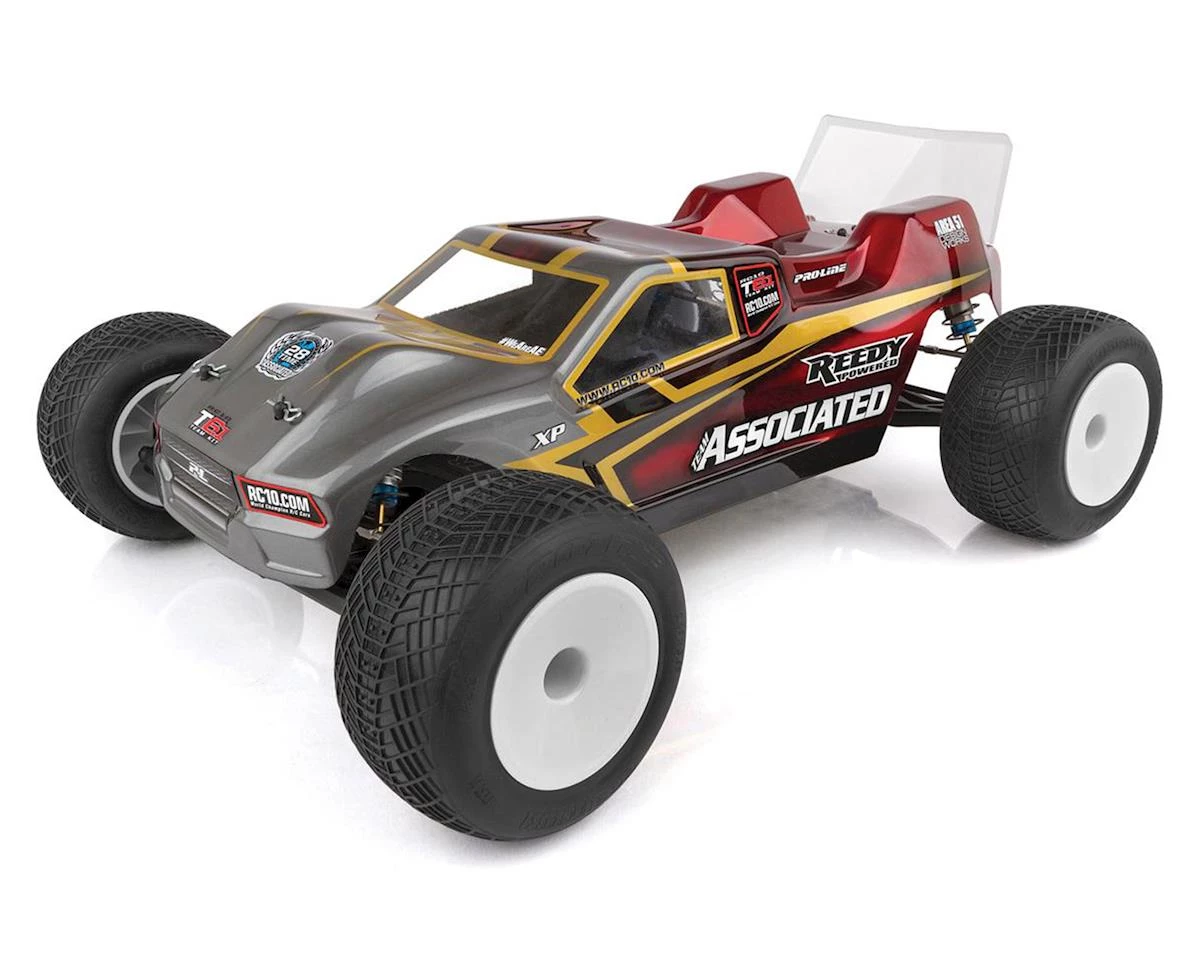

NOTE: Painted body, wheels and tires shown in photos are for illustrative purposes only and are not included. See needed to complete list below for a full list of items required to complete the model.

Features:

• Layback Stealth transmission included for lower and more rearward CG
• Easy access to ball differential
• Differential height adjustment with included 0, 1, 2, and 3mm inserts
• Redesigned slipper assembly for better weight balance and shock clearance
• Innovative rear arm with molded inserts for ultra-fine lower shock mounting adjustments
• Machined pistons included for better fit and smoother operation
• Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustments
• Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
• Reverse bellcrank steering allows more room for mounting electronics
• Bolt-on steering block arms for easy Ackermann adjustments
• Precision-ground steering bellcrank screws to reduce steering slop
• Aluminum rear ballstud mount for added strength
• 7.0mm aluminum rear clamping hex with laser etching
• Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing binding and friction
• Pro-Line Enforcer body included
• Front and rear anti-roll bar integration makes tuning easy
• Heavy-duty routed graphite shock towers
• Heavy-duty rear axle with 91mm CVA bones
• Lightweight, hard-anodized aluminum chassis with centralized mass for improved handling on all track types
• V2 12mm “Big Bore” threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
• One-piece shock bushing to make assembly easier
• Lightweight aluminum top shaft
• Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)

Specifications:
Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 368mm (14.49in)
Width: varies
Wheelbase: 288mm (11.34in)
Weight: varies
Drive: 2WD

Needed to Complete:

• 1:10 scale 540-size electric motor
• 1:10 scale electronic speed control
• 7.4V LiPo or 6.6V LiFe shorty pack battery
• Battery charger (able to charge one of the batteries mentioned above)
• 2-channel surface transmitter, and its batteries
• 2-channel receiver
• Steering servo
• Pinion gear (48 pitch)
• Spray paint for Polycarbonate body
• 1:10 scale 12mm hex truck wheels
• 1:10 scale truck tires
• Glue for tires and wheels

This product was added to our catalog on May 22, 2018
